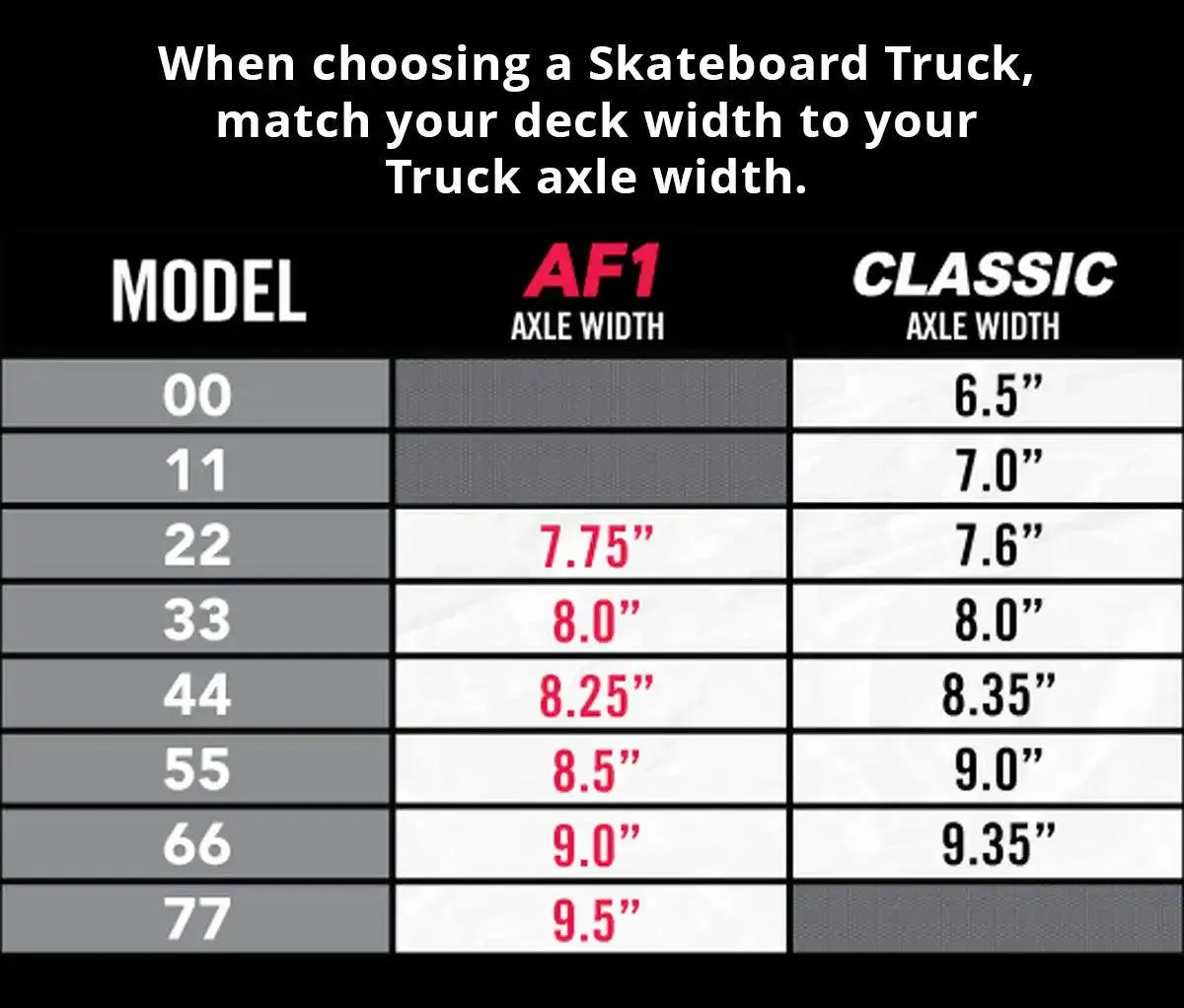

ACE AF1 features game-changing performance without deviating from our original Ace geometry. The ACE AF1 has a 70% increase in the aluminum’s structural integrity. and updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

Details:

• Set of 2.
• Hanger width: 5.6” (143mm)
• Truck height: 2.1” (53mm)
• Manufactured with AA 356.2 alloy.
• T6 heat-treated baseplates and hangers.
• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.
• Rethreading axle nuts.
• Hand-poured 96a urethane pivot bushings.
• Refined suspension for a cleaner turn.
• Top Bushing: 12mm tall | 91a hardness.
• Bottom Bushing: Bottom 14mm tall | 86a hardness.
• Machine-faced hanger ends for precise bearing contact
